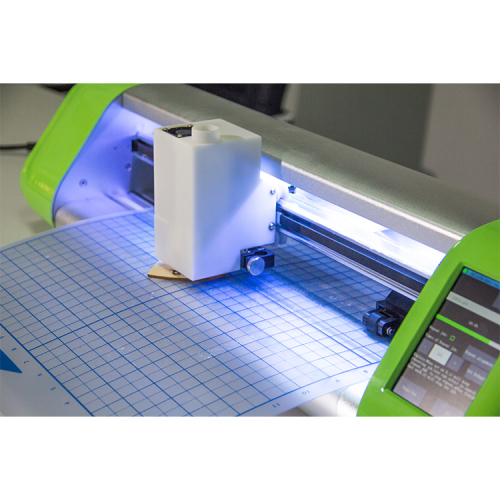

16“ single head cutting plotter with laser carving

Item No.: MM-CAH16-L
MM-CAH16-L 16“ Laser Cutting Plotter support Remote and one key update,Support contour cutting,More infterface available,100% automatically contouring cutting
Product parameters
Max cutting width: 410mm
Max cutting speed: 750mm/s
Positioning mode: Fully automatic positioning by CCD Camera
WIFI: Optional
Laser Tube Type: Micro laser cutter
INQUIRY
Description Specification Application Video
  1. Highspeed 32bit M4 arithmetic microprocessor.8M merroy. Stable and high precision cuter,smooth and quiet.
  2. Real USB connect,support hot-plug,no USB drivers reqired.
  3. Support automatically contour cut,cutter can search and deal with mark points automatically by camera.High precision and smart.
  4. 4.3" touch screen,high resolution,high definition
  5. APP interface: User can control cutter by phone app
  6. Ultra pressure. 160setting adjustable.Capable for thick mateial.
  7. Simple and decent outlook design.Alumimum alloy boday. Many colors option.
  8. LED light bar,user can change color freely.
  9. Multi language available,defaul English and Chinese.Other languages are available.
  10. Single Cutting Head, Support laser carving
Model MM-CAH16-L  (16inch Laser cutting plotter)
Acceptable media width 500mm
Max cutting width 410mm
16Inch
Laser carving Support
Camera Support
Contour cutting function * Fast ,automatically and high precision contour cut by using camera.
Operation 4.3" TFT LCD Large touch screen
Interface HD large screen full-color APP information function display
Connector USB cable,USB flash drive,Wifi(optional)
Contour cutting calibration Easy use and high precision calibrate
Mainboard 32bit ARM cortex M4 MCU,8M memory. Support remote and one key update.
location mode Bound system. set origin freely
Driver Digital DC stepper motor,microstep driving
Command HP-GL, DMPL
Max moving speed 750mm/s
Max cutting speed 600mm/s
Max cutting thickness 1mm
Force Single head: 50g~800g  ( 160 setting adjustable )
Cutting precision < ±0.1mm
Repeat precision 0.082 mm
Power supply DC24V 3A(AC100~240V/50Hz~60Hz  24V 3A)
working environment +5℃~ +45℃,relative humidity 30%~70%
Support type Desk type
Body color Silver-green/silver-white/black-red(optional)
Bracket optional
Size 720*165*10mm
Packing G/N weight 9.0 / 6.9kg
Cutting plotter Software SignMaster Cut / Flexi / Signcut / CorelDRAW driver
Operation system Windows2000 / XP / 2003 / win7 / 2003  / win7 /win10
MAC OSX10.2.8 or above

































What is Contour Cutting?

Contour Cutting involves placing an outline around an object or objects in SignMaster Cut. The objects but not the outline are printed onto media such as white vinyl, later the outline is cut out with your Vinyl Cutter, which in turn creates a decal. You can even create a border to any thickness around your decals by setting the distance from the edge of the object to the contour cutting line.
